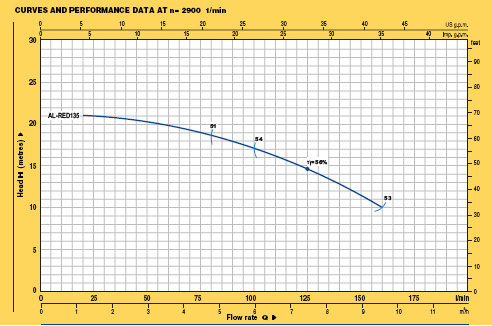

RANGE OF PERFORMANCE
Maximum flow rate 160 l/min (9.6 m3/h)
Maximum head 23 m
LIMITS OF USE
Manometric suction lift up to 7 m
Liquid temperature up to + 90°C
Environment temperature up to + 55°C
INSTALLATION AND USE
It is recommended for pumping clean water and liquids that are chemically non aggressive to the materials from which the pump is made.

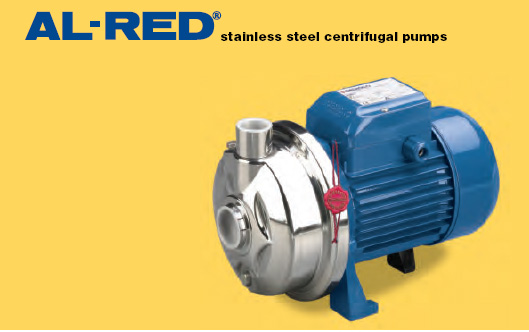

THE CONSTRUCTION OF THESE CENTRIFUGAL PUMPS MAKES THEM SUITABLE FOR USE IN THE DOMESTIC, AGRICULTURAL AND INDUSTRIAL SECTOR. ALL THE WETTED PARTS ARE IN STAINLESS STEEL AISI 340 TO GUARANTEE TOTAL HYGIENE AND MAXIMUM RESISTANCE TO CORROSION.
The pump must be installed in enclosed places, or at least protected against inclement weather.
CONSTRUCTION CHARACTERISTICS
  • PUMP BODY: stainless steel AISI 304, with threaded ports ISO 228/1.
  • BODY BACK-PLATE AND DIFFUSER: AISI 304.
  • IMPELLER: stainless steel AISI 304, of the type with centrifugal radial flow.
  • MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
  • MECHANICAL SEAL: ceramic - graphite - NBR.
  • ELECTRIC MOTOR: the pumps are close-coupled to a carefully matched PEDROLLO electric motor, quiet running, totally enclosed fan cooled (TEFC), suitable for continuous duty.
    AL-RED 135m: single-phase 230 V - 50 Hz with capacitor and thermal overload protector.
    AL-RED 135: three-phase 230/400 V - 50 Hz.
  • INSULATION : class F.
  • PROTECTION: IP 44.
  • REGISTERED MODEL nº 72753.
  • AL-RED® is a REGISTERED TRADE MARK
OPTIONS ON REQUEST
  • version in stainless steel EN 10088-3 - 1.4401 (AISI 316)
  • special mechanical seal
  • other voltages or frequency 60 Hz
