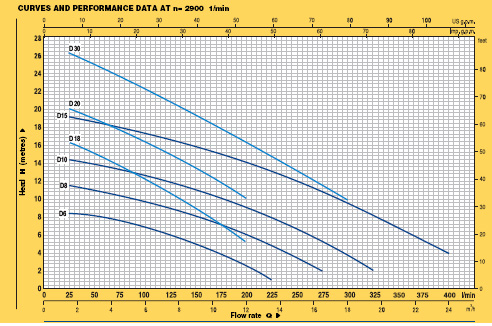

| RANGE OF PERFORMANCE |
|
Flow rate up to 400 l/min (24 m3/h)
Head up to 27 m |
|
| LIMITS OF USE |
|
Depth up to 5 m
Liquid temperature up to + 40°C
Passage of suspended solid bodies up to Ø 10 mm
Drainage level 15 mm from the bottom
For continuous duty: minimum immersion 220 mm from pump base |
|
|
| INSTALLATION AND USE |
|

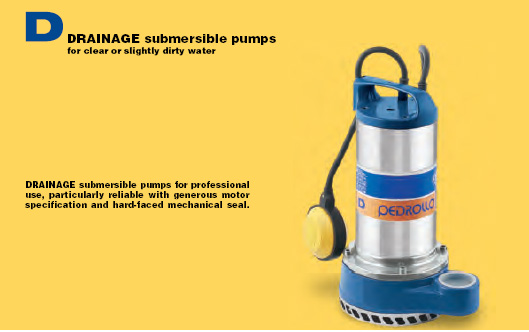

| DESIGNED FOR DRAINING CLEAR OR SLIGHTLY DIRTY WATER WITH SMALL SOLIDS, THEY ARE RECOMMENDED FOR DOMESTIC, CIVIL AND PROFESSIONAL USE, FOR DRAINING FLOODED AREAS SUCH AS CELLARS AND GARAGES OR FOR EMPTYING SWIMMING POOLS OR TANKS AND FOR DISPOSING OF NON-SEWAGE WASTE WATER. THESE PUMPS ARE OUTSTANDING IN THEIR RELIABILITY IN FIXED INSTALLATIONS WITH AUTOMATIC OPERATION. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- DELIVERY BODY: cast iron, with threaded port ISO 228/1.
- MOTOR CASING: stainless steel AISI 304.
- SUCTION GRID: stainless steel AISI 304.
- IMPELLER: open type, in glass filled technopolymer
- MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
- DOUBLE SEAL: mechanical seal silicon carbide - NBR, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
- MOTOR: submersible asynchronous for continuous duty.
Dm: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector.
D: three-phase 380÷415 V - 50 Hz.
- INSULATION: class F.
- PROTECTION: IP 68.
STANDARD FEATURES:
Dm (single-phase) Float switch.
Neoprene power cable "H07 RN-F" length 5 metres with Schuko plug.
D (three-phase) Neoprene power cable "H07 RN-F" length 5 metres.
|
|
|
|
- 10 metre power cable.
N.B. required for outdoor use to comply with standard EN 60335-2-41
- control box for three-phase pumps 1.1 kW
- single-phase pumps without float switch
- other voltages or frequency 60 Hz
|
|
