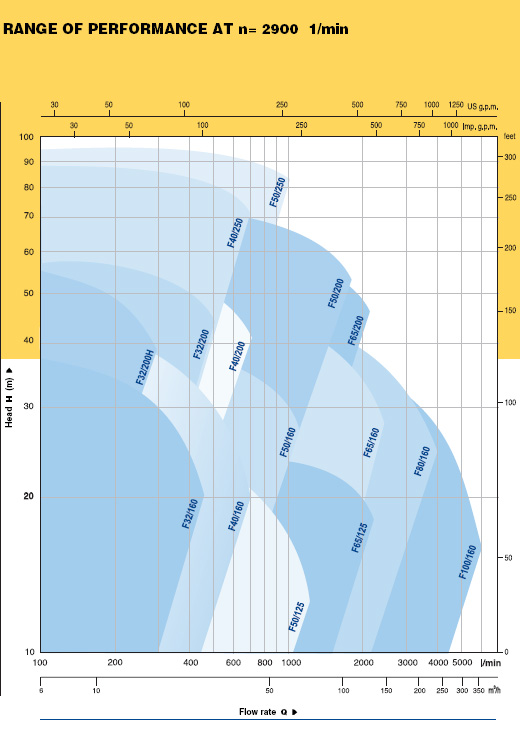

RANGE OF PERFORMANCE
Flow rate up to 6000 l/min (360 m3/h)
Head up to 95 m
LIMITS OF USE
Manometric suction lift up to 7 m
Liquid temperature from -10°C to + 90°C
Environment temperature from -10°C to + 40°C
Max. pressure in the pump body 10 bar (PN10)
INSTALLATION AND USE
They are recomended for pumping clean water and liquids that are chemicaly non agressive to the materials from which the pump is made.
THIS SERIES IS SUITABLE FOR SUPPLYING AND MOVING WATER, IN COOLING, HEATING, CIRCULATING AND CONDITIONING SYSTEMS, FOR FIRE FIGHTING, IRRIGATION, INDUSTRIAL AND AGRICULTURAL APPLICATIONS.

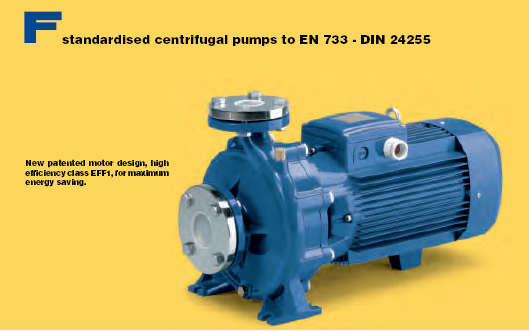

Manifacture in acordance with dimensional standards EN 733 - DIN 24255 ensures models are fuly interchangeable.The design alows the pump body to be removed without disconnecting it from the pipes (back pull out). The pumps must be instaled in enclosed places, or at least protected against inclement weather.
CONSTRUCTION CHARACTERISTICS

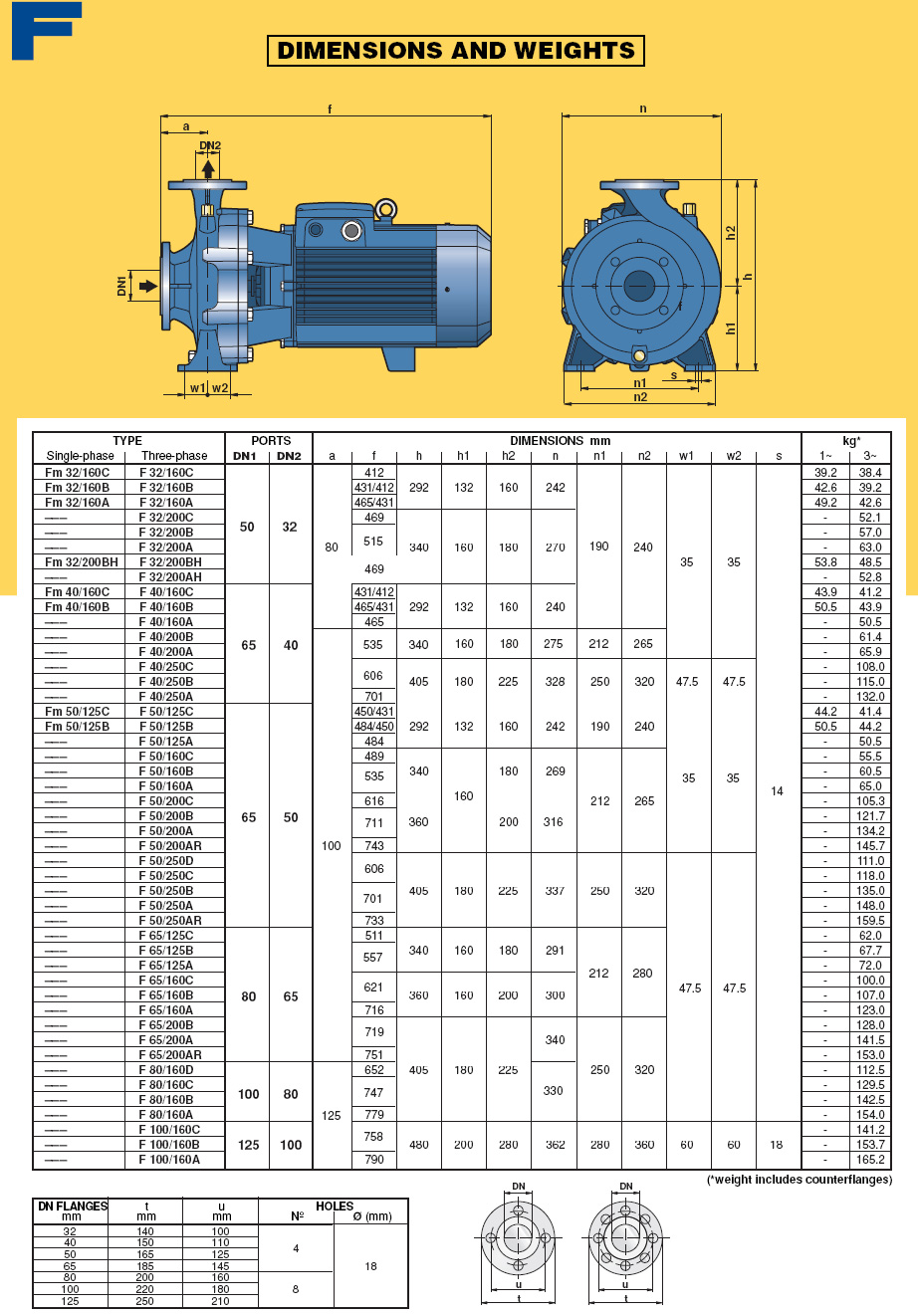

  • PUMP BODY: cast iron, complies with dimensional standards EN 733 - DIN 24255 and UNI 7467-NF E-44-111, with flanged suction and delivery ports complete with threaded stel counterflanges.
  • BODY BACK-PLATE: cast iron.

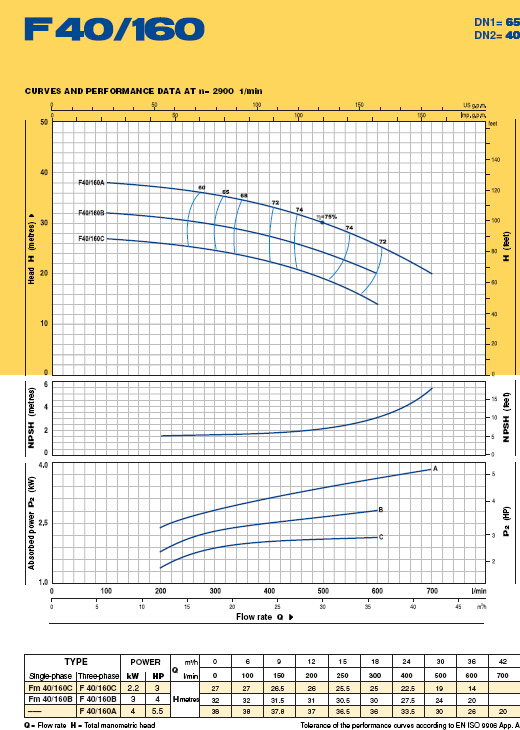

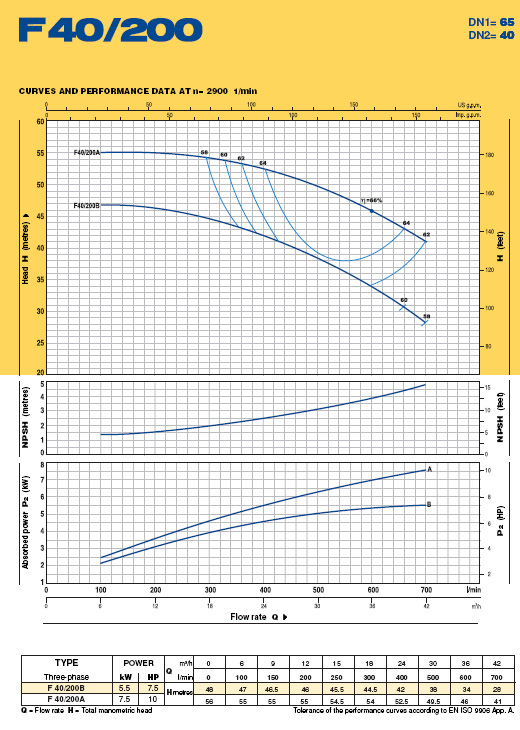

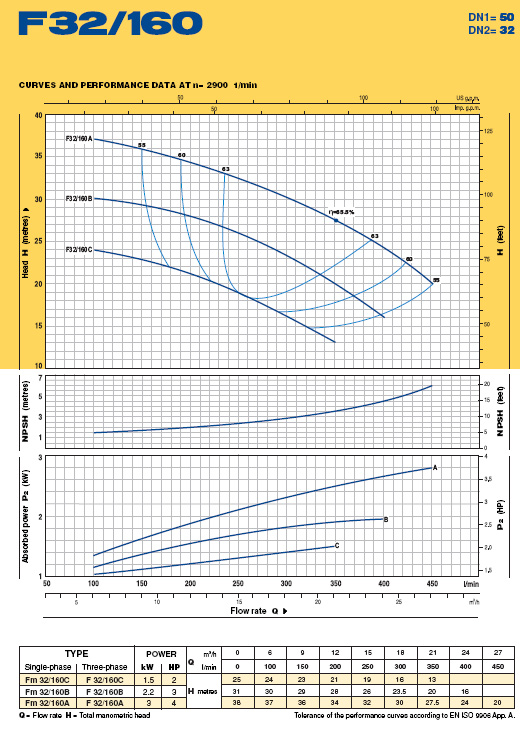

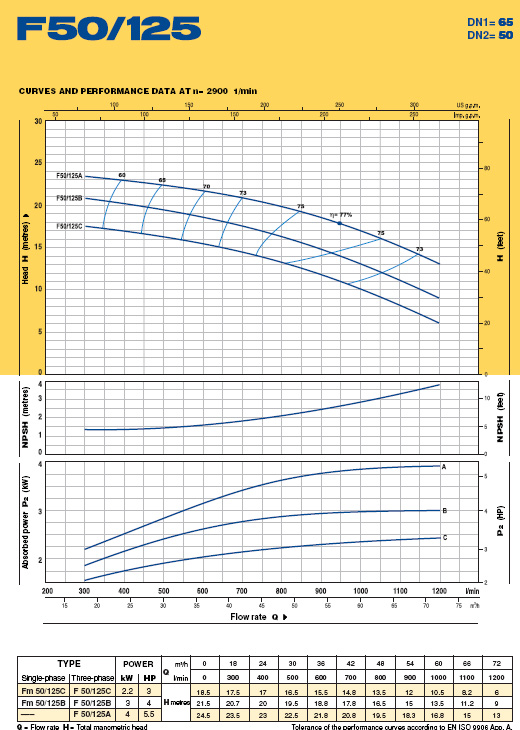

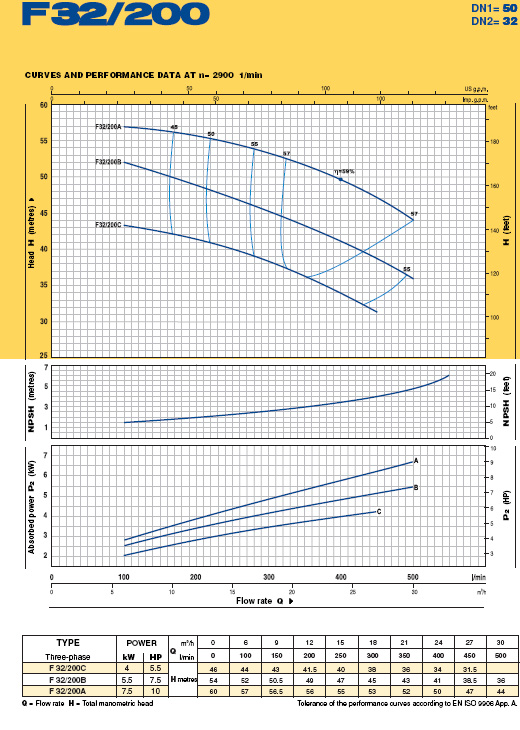

  • IMPELLER: brass formodels F32/160,F32/200,F40/160,F40/200, F50/125eF50/160.

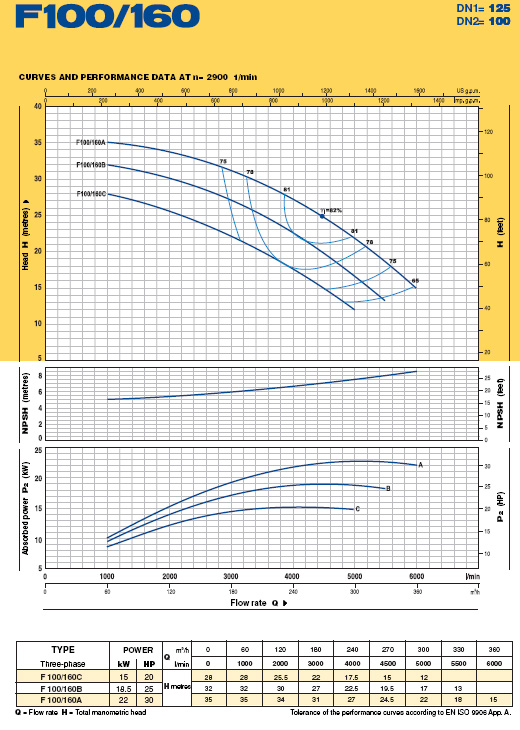

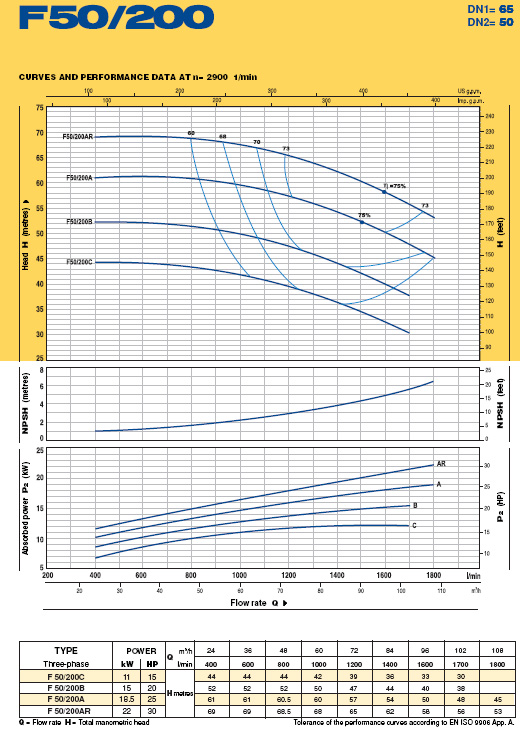

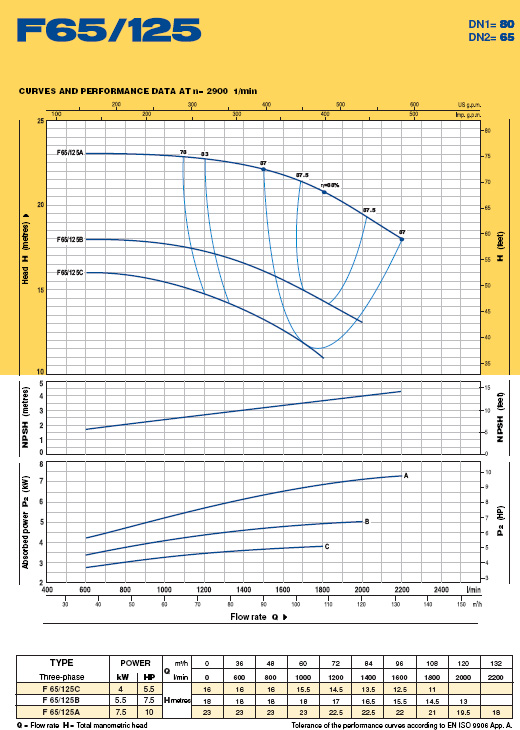

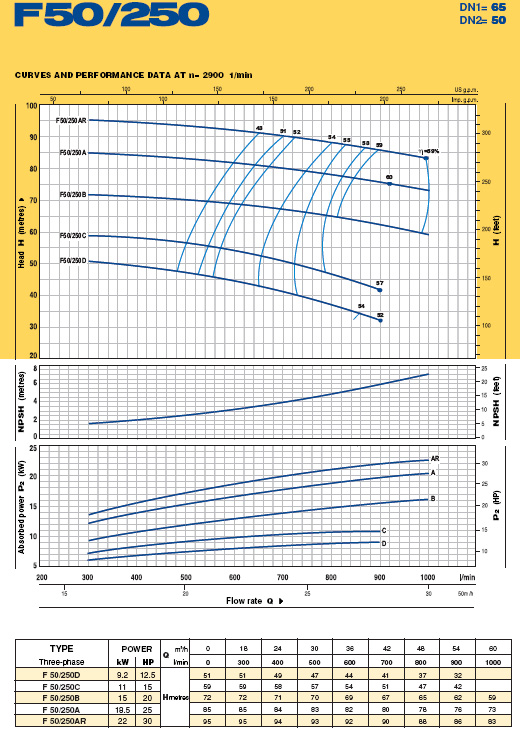

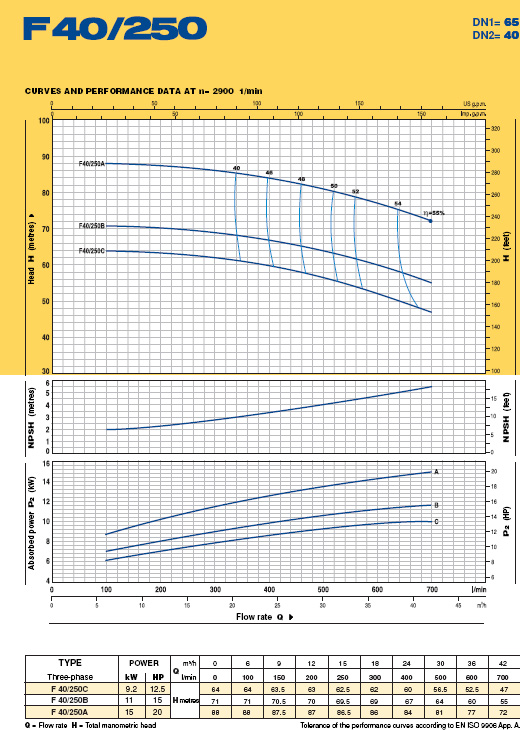

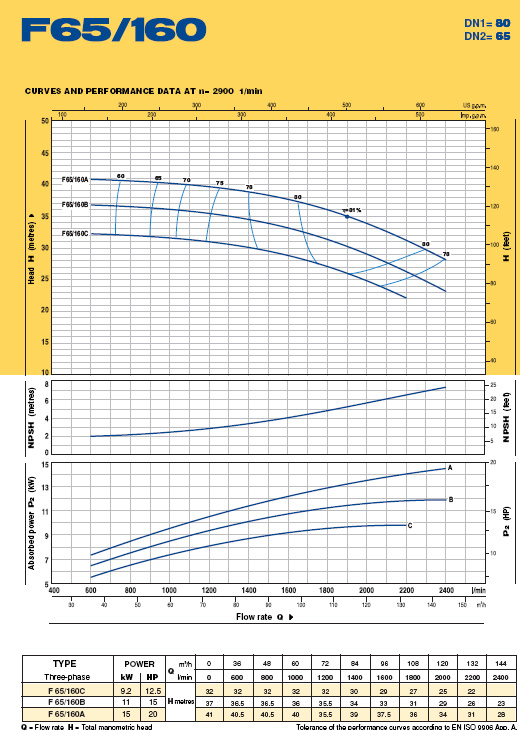

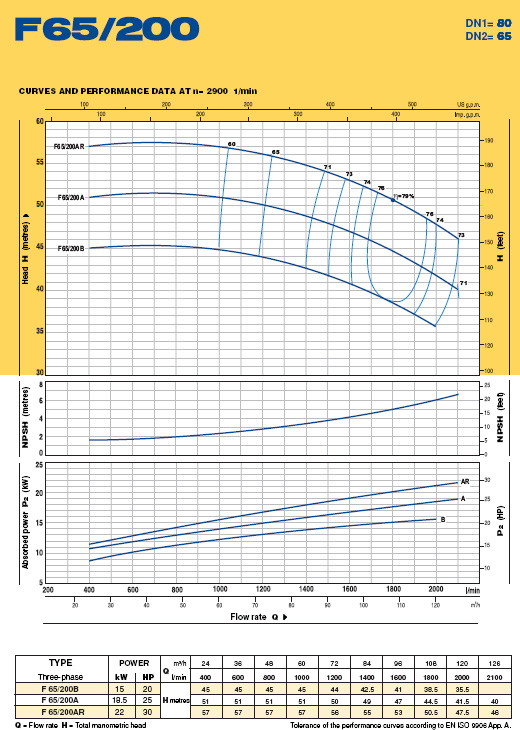

  • IMPELLER: cast iron for models F40/250,F50/200,F50/250,F65/125, F65/160,F65/200,F80/160,F100/160
  • MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
  • MECHANICAL SEAL: ceramic - graphite - NBR.
  • ELECTRIC MOTOR: the pumps are close-coupled to a carefuly matched PEDROLO electric motor , asynchronous type with high efficiency (class EFF1 for powers from 4 to 22 kW), quiet running, totaly enclosed fan coled (TEFC), suitable for continuous duty.
    Fm: single-phase 230 V - 50 Hz with capacitor and thermal overload protector (up to 1.5 kW).
    F: thre-phase 230/400 V - 50 Hz up to 4 kW. 400/690 V - 50 Hz from 5.5 to 22 kW.
  • INSULATION: class F .
  • PROTECTION: IP 44.
OPTIONS ON REQUEST
  • pump shaft in stainless stel EN 10088-3 - 1.4401 (AISI 316)
  • special mechanical seal
  • other voltages or frequency 60 Hz
  • protection IP 55
  • for liquids with higher or lower temperatures
  • for environments with higher or lower temperatures
