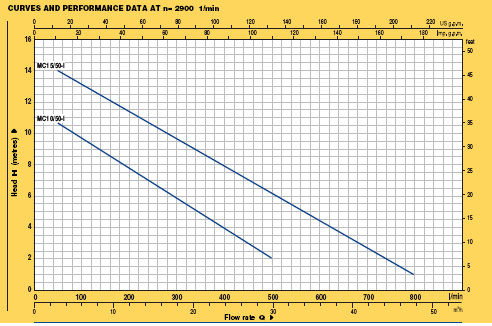

| RANGE OF PERFORMANCE |
|
Flow rate up to 800 l/min (48 m3/h)
Head up to 15 m |
|
| LIMITS OF USE |
|
Depth up to 5 m
Liquid temperature up to + 40°C
Passage of suspended solid bodies up to Ø 50 mm
For continuous duty: minimum immersion 280 mm from pump base |
|
|
| INSTALLATION AND USE |
|

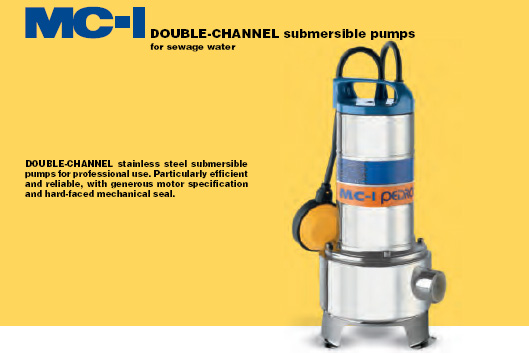

| MC-I SUBMERSIBLE PUMPS ARE RECOMMENDED FOR DRAINING DIRTY WATER AND SEWAGE IN THE DOMESTIC AND CIVIL SECTORS. THEY ARE EQUIPPED WITH A "DOUBLE-CHANNEL" STAINLESS STEEL IMPELLER WHICH ALLOWS THE PUMPING OF LIQUIDS CONTAINING SUSPENDED SOLID BODIES WITH DIMENSIONS UP TO Ø 50 mm AND SHORT FIBRES. THEY ARE IDEAL FOR PUMPING DRAINAGE WATER, SEWAGE OR WASTE WATER FOR A SINGLE DWELLING, AND FOR CLEARING SUFACE OR NUISANCE WATER, EVEN IF MUDDY. THESE PUMPS ARE OUTSTANDING IN THEIR RELIABILITY IN FIXED INSTALLATIONS WITH AUTOMATIC OPERATION. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- DELIVERY BODY: stainless steel AISI 304, with threaded port ISO 228/1.
- MOTOR CASING AND BASE: stainless steel AISI 304.
- IMPELLER: double-channel, in stainless steel AISI 304.
- MOTOR SHAFT: stainless steel AISI 316.
- DOUBLE SEAL: mechanical seal silicon carbide - NBR - stainless steal AISI 316, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running. .
- MOTOR: submersible asynchronous for continuous duty.
MCm-I: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector.
MC-I: three-phase 380÷415V - 50 Hz.
- INSULATCION: class F.
- PROTECTION: IP 68.
STANDARD FEATURES:
MCm-I (single-phase) Float switch.
Neoprene power cable "H07 RN-F" length 5 metres with Schuko plug.
MC-I (three-phase) Neoprene power cable "H07 RN-F" length 5 metres.
|
|
|
|
- 10 metre power cable. N.B. required for outdoor use to comply with standard EN 60335-2-41
- control box for three-phase pumps 1.1 kW
- single-phase pumps without float switch
- other voltages or frequency 60 Hz
|
|
