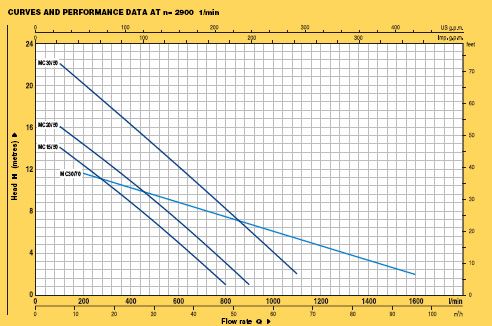

| RANGE OF PERFORMANCE |
|
Flow rate up to 1600 l/min (96 m 3/h)
Head up to 24 m |
|
| LIMITS OF USE |
|
Depth up to 10 m
Liquid temperature up to + 40°C
Pasage of solid bodies max Ø 50 mm for MC 15-20-30/ 50
Pasage of solid bodies max Ø 70 mm for MC 30/ 70
For continuous duty: minimum immersion 420 mm from pump base |
|
|

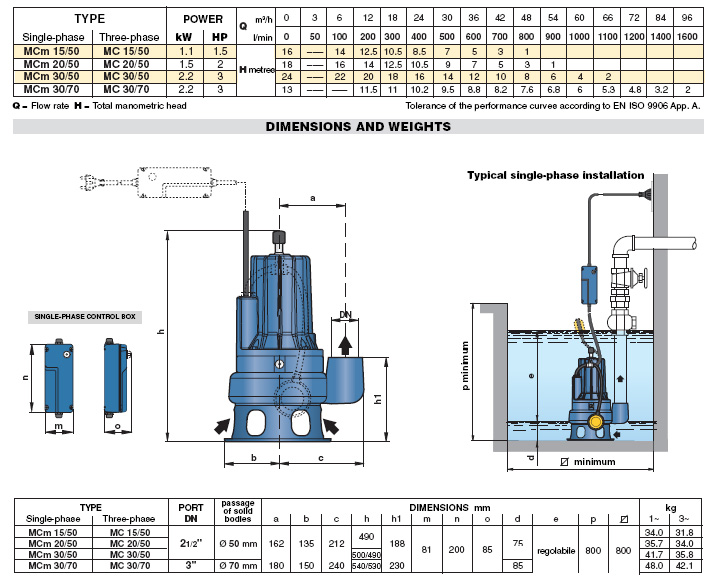

| INSTALLATION AND USE |
|

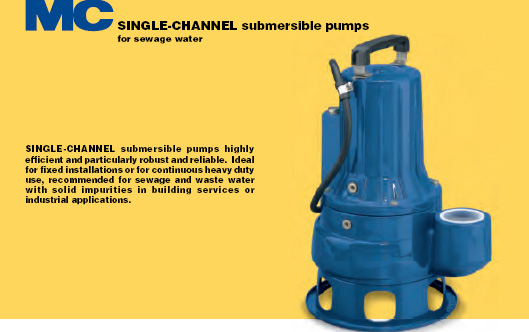

| MC SERIES PUMPS ARE MADE OF EXCEPTIONALLY ROBUST HEAVY GAUGE CAST IRON, ABRASION RESISTANT AND LONG-LASTING, WITH A SINGLE-CHANNEL IMPELLER WHICH CAN HANDLE LIQUIDS WITH SUSPENDED SOLIDS AND SHORT FIBRES. THEY ARE IDEAL FOR SEWAGE, WASTE AND GROUND WATER, EVEN WITH SOLIDS OR MUD, AND ARE THEREFORE RECOMMENDED FOR BUILDING OR INDUSTRIAL EFLUENT AND DRAINAGE OF LARGE AREAS SUCH AS CAR PARKS. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- PUMP BODY, MOTOR CASING: cast iron.
- IMPELLER: single-channel, in cast iron .
- BASE: stainles steel AISI 304.
- MOTOR SHAFT: stainles steel EN 10088-3 - 1.4057.
- DOUBLE SEAL: mechanical seal silicon carbide - widia - NBR , with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
- MOTOR: submersible asynchronous, 2 pole, for continuous duty.
MCm: single-phase 220÷240 V - 50 Hz
Models up to 1.5 kW have built in thermal protection - 2.2 kW single-phase versions have a thermal protector provided in the winding for connection to the control box.
MC: three-phase 380÷415 V - 50 Hz.
- Thermal protectors are provided in the winding for connection to the external control panel
- INSULATION: clas F .
- PROTECTION: IP 68.
STANDARD FEATURES:
MCm (single-phase) Float switch.
10m "H07 RN-F" submersible power cable with Schuko plug.
1.1 to 1.5 kW models are supplied with control box with capacitor and manual reset motor protector.
2.2 kW models are supplied with control box type QES 300 MONO.
MC (three-phase) 10m "H07 RN-F" neoprene power cable
|
|
|
|
- control box for three-phase pumps
- dual voltage: 230/400 V or 400/690 V
- single-phase versions without float switch
- other voltages or frequency 60 Hz
|
|
