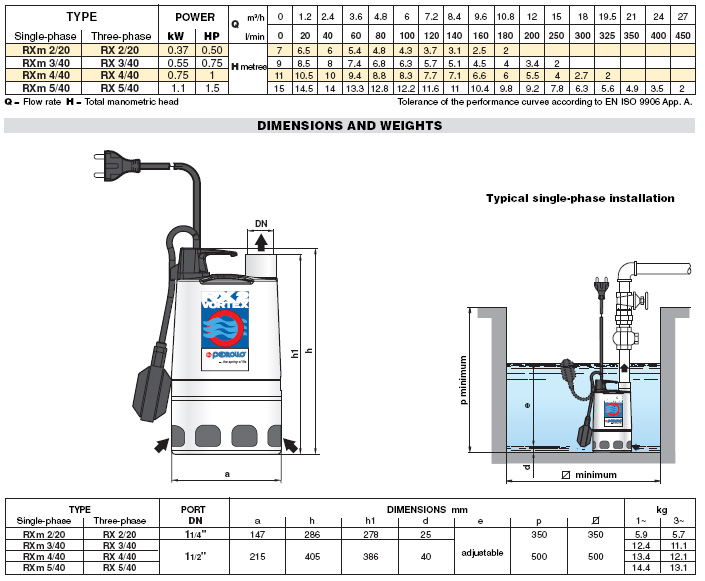

| RANGE OF PERFORMANCE |
|
Flow rate up to 450 l/min (27 m 3/h)
Head up to 14.5 m |
|
| LIMITS OF USE |
|
Depth up to 10 m
Liquid temperature up to + 50°C
Liquid temperature up to + 60°C for intermittent duty.
Liquid temperature up to + 90°C for intermittent duty maximum 3 minutes.
Pasage of solid bodies:
up to 20 mm for RX2 - up to 40 mm for RX3-4-5
Drainage level from the botom:
25 mm for RX2 - 40 mm forRX3-4-5 |
|
|
| INSTALLATION AND USE |
|

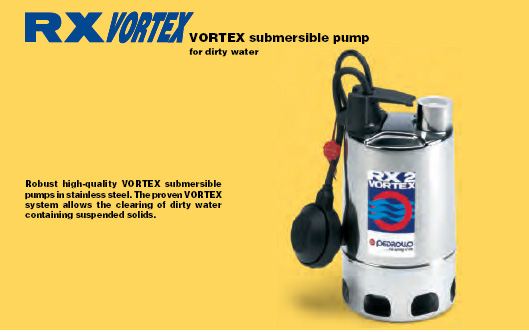

| RX-VORTEX PUMPS ARE SUITABLE FOR DRAINING DIRTY WATER. THE CONSTRUCTION GUARANTEES SIMPLE AND SAFE OPERATION, DUE TO THE COMPLETE COOLING OF THE MOTOR BY THE PUMPED WATER. THEY ARE RECOMENDED FOR DOMESTIC USE, FOR DRAINING DIRTY WATER CONTAINING SUSPENDED SOLIDS. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- DELIVERY BODY: stainles steel AISI 304 , with threaded port ISO 228/1.
- SUCTION GRID: stainles steel AISI 304 .
- IMPELLER: stainles steel AISI 304 .
- MOTOR SUPPORT: stainles steel AISI 304 .
- MOTOR SHAFT: stainles steel EN 10088-3 - 1.4104 .
- DOUBLE SEAL: mechanical seal silicon carbide - NBR , with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
- MOTOR: submersible asynchronous single-phase for continuous duty.
RXm: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector.
RX: three-phase380÷415 V - 50 Hz.
- INSULATION: class F.
- PROTECTION: IP 68.
- REGISTERED MODEL.
STANDARD FEATURES:
RXm (single-phase) float switch.
Neoprene power cable "H05 RN-F" length 5 metres with Schuko plug.
RX (three-phase) Neoprene power cable "H05 RN-F" length 5 metres.
|
|
|
|
- special mechanical seal
- 10 metre power cable
N.B. required for outdoor use to comply with standard EN 60335-2-41
- control box for three-phase pumps 1.1 kW
- single-phase versions without float switch
- other voltages or frequency 60 Hz
|
|
