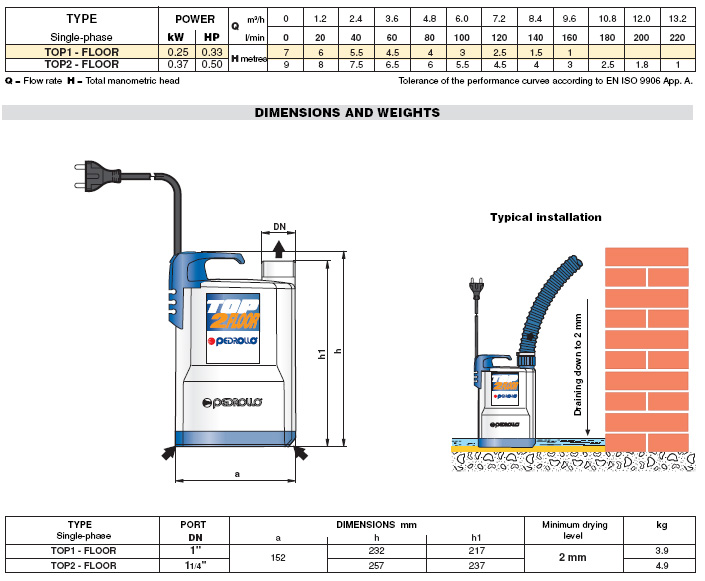

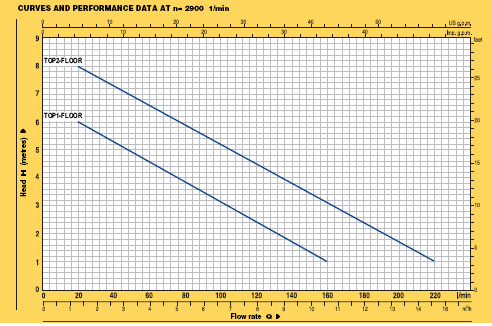

RANGE OF PERFORMANCE
Flow rate up to 220 l/min (13.2 m3/h)
Head up to 9 m
LIMITS OF USE
Depth up to 3 m
Liquid temperature up to +40°C
(+90° C for a maximum period of 3 minutes)
Passage of solid bodies up to Ø 5 mm

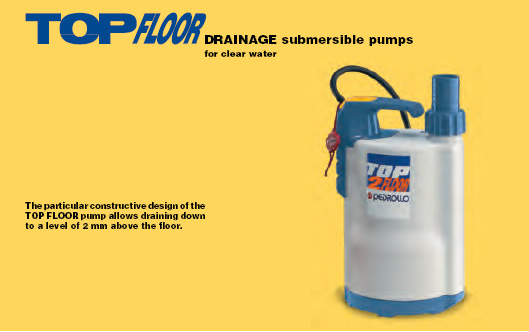

Drainage level 2 mm from the bottom
INSTALLATION AND USE
THE TOP-FLOOR SERIES IS SUITABLE FOR DRAINING CLEAR WATER WITHOUT ABRASIVE PARTICLES. THEIR ABILITY TO DRAIN WATER DOWN TO 2 MILLIMETRES FROM THE FLOOR MAKES THEM IDEAL FOR EMERGENCY DOMESTIC USE FOR SMALL FLOODED AREAS AND IN ALL THOSE APPLICATIONS WHERE MAXIMUM DRAINAGE IS REQUIRED.
CONSTRUCTION CHARACTERISTICS
  • DELIVERY BODY: glas filed technopolymer, particularly resistant to impact and corosion, with threaded port ISO 228/1.
  • SUCTION GRID: technopolymer.
  • IMPELLER: open type in technopolymer.
  • MOTOR SUPPORT: stainless steel AISI 304.
  • MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
  • DOUBLE SEAL: mechanical seal ceramic - graphite - NBR, with oil barier chamber and iner lip seal to protect the seal in the event of dry runing.
  • MOTOR: submersible asynchronous single-phase for continuous duty.
    TOP-FLOOR: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector.
  • INSULATION: clas F .
  • PROTECTION: IP 68.
  • REGISTERED MODEL nº 72765

    STANDARD FEATURES:
    TOP-FLOOR Neoprene power cable "H05 RN-F" length 5 metres with Schuko plug.
    Hosetail.
OPTIONS ON REQUEST
  • versions with external float switch
  • special mechanical seal
  • 10 metre power cable.
    N.B. required for outdor use to comply with standard EN 60335-2-41
  • other voltages or frequency 60 Hz
