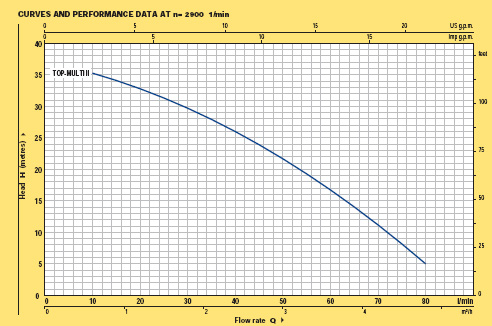

| RANGE OF PERFORMANCE |
|
Flow rate up to 100 l/min (6 m3/h)
Head up to 42 m |
|
| LIMITS OF USE |
|
Submersion depth up to 10 m
Liquid temperature up to + 40°C
Maximum sand content 50 g/m3
Emptying level up to 30 mm from the bottom |
|
|
| INSTALLATION AND USE |
|
| THEY ARE RECOMMENDED FOR PUMPING CLEAN WATER WITH A SAND CONTENT NO HIGHER THAN 50 g/m3. THEIR HIGH EFFICIENCY AND RELIABILITY MAKES THEM SUITABLE FOR SUPPLYING DOMESTIC WATER FROM TANKS, RESERVOIRS OR RELATIVELY DEEP WELLS, DRAWING RAINWATER FROM CISTERNS, WATERING BY HAND OR FEEDING. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- DELIVERY BODY AND SUCTION GRID: glass filled technopolymer, particularly resistant to impact and corrosion, with threaded port ISO 228/1.
- IMPELLERS and DIFFUSERS: technopolymer.
- DIFFUSER CONTAINER: stainless steel AISI 304.
- MOTOR SUPPORT: stainless steel AISI 304.
- MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
- DOUBLE SEAL: mechanical seal ceramic -silicon carbide-NBR, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
- MOTOR: asynchronous, for continuous duty.
TOP MULTI: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector.
- INSULATION: class F.
- PROTECTION: IP 68.
- REGISTERED MODEL n° 72765.
STANDARD FEATURES:
TOP-MULTI Float switch
Neoprene power cable "H05 RN-F" length 10 metres with Schuko plug.
Hosetail.
Coupling with non-return valve.
|
|
|
|
- other voltages or frequency 60 Hz
|
|
