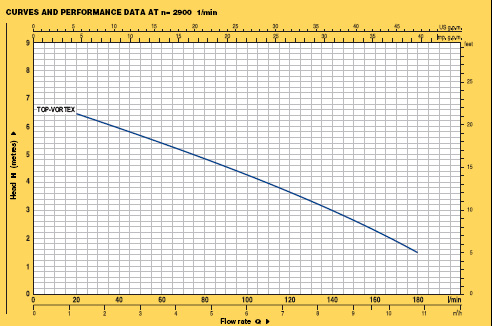

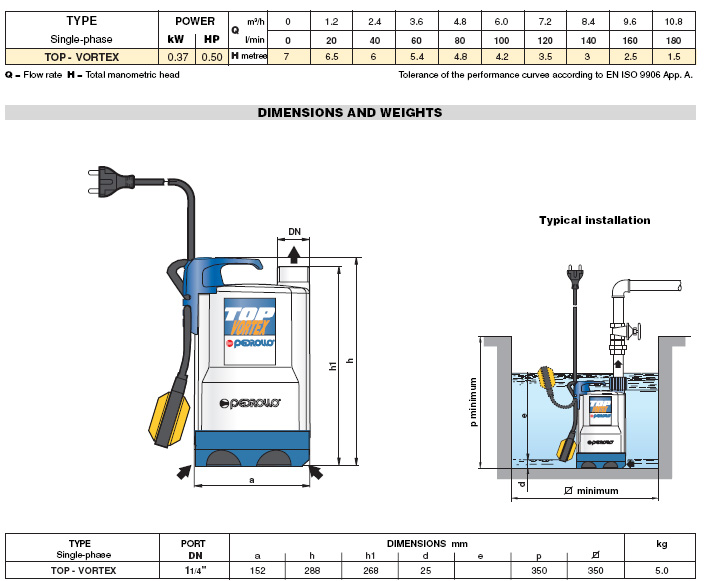

RANGE OF PERFORMANCE
Flow rate up to 180 l/min (10.8 m 3/h)
Head up to 7 m
LIMITS OF USE
Depth up to 3 m
Liquid temperature up to + 40°C
(+90° C for a maximum period of 3 minutes )
Pasage of solid bodies up to Ø 20 mm
Drainage level 25 mm from the bottom
INSTALLATION AND USE

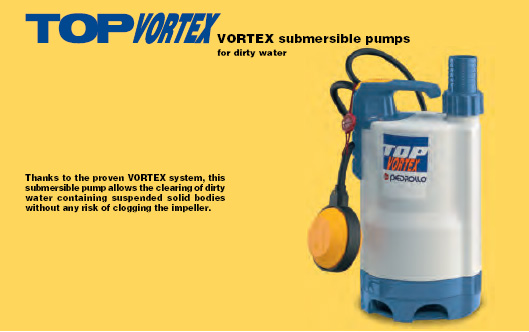

THE TOP-VORTEX PUMP IS SUITABLE FOR DRAINING DIRTY WATER THAT IS CHEMICALLY NON AGRESSIVE. THE CONSTRUCTION GUARANTEES SIMPLE AND SAFE OPERATION DUE TO THE COMPLETE COOLING OF THE MOTOR BY THE PUMPED WATER AND THE DOUBLE SEAL DESIGN. IT IS RECOMENDED FOR DOMESTIC USE, FOR THE CLEARING OF DIRTY WATER, FOR EMPTYING TANKS, DOMESTIC DRAINS AND COLLECTION TRAPS, EVEN WITH SUSPENDED SOLID BODIES WITH DIMENSIONS UP TO Ø 20 mm.
CONSTRUCTION CHARACTERISTICS
  • DELIVERY BODY: glas filed technopolymer , particularly resistant to impact and corosion, with threaded port ISO 228/1.
  • SUCTION GRID: technopolymer .
  • IMPELLER: technopolymer .
  • MOTOR SUPPORT: stainles steel AISI 304.
  • MOTOR SHAFT: stainles steel EN 10088-3 - 1.4104 .
  • DOUBLE SEAL: mechanical seal ceramic - graphite - NBR , with oil barier chamber and iner lip seal to protect the seal in the event of dry runing.
  • MOTOR : submersible asynchronous single-phase for continuous duty.
    TOP-VORTEX: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector.
  • INSULATION: clas F .
  • PROTECTION: IP 68.
  • REGISTERED MODEL nº 72765

    STANDARD FEATURES:
    TOP-VORTEX
    Float switch.
    Hosetail.
    Neoprene power cable "H05 RN-F" length 5 metres with Schuko plug.
OPTIONS ON REQUEST
  • special mechanical seal
  • 10 metre power cable.
    N.B. required for outdor use to comply with standard EN 60335-2-41
  • other voltages or frequency 60 Hz
