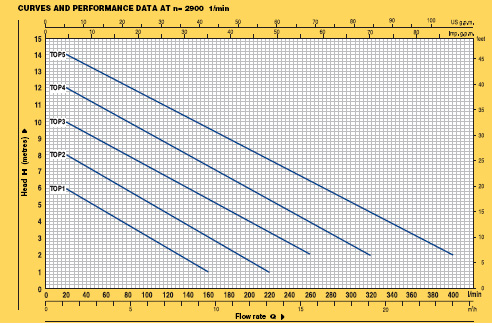

RANGE OF PERFORMANCE
Flow rate up to 400 l/min (24 m3/h)
Head up to 14.5 m
LIMITS OF USE
Depth up to 5 metres (3 metres up to 0.55 kW)
Liquid temperature up to + 40°C
(+90°C for a maximum period of 3 minutes)
Passage of solid bodies up to Ø 10 mm
Drainage level:
14 mm from the bottom for TOP 1-2-3
30 mm from the bottom for TOP 4-5
INSTALLATION AND USE

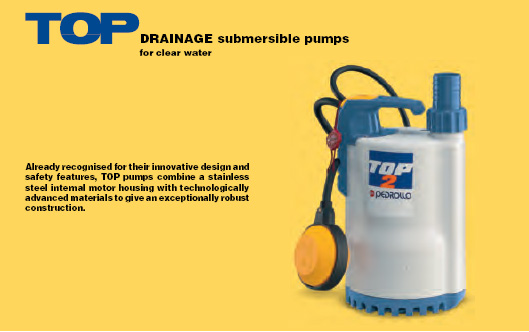

THE TOP SERIES IS SUITABLE FOR DRAINING CLEAR WATER WITHOUT ABRASIVE PARTICLES. THE CONSTRUCTION GUARANTEES SIMPLE AND SAFE OPERATION DUE TO THE COMPLETE COOLING OF THE MOTOR BY THE PUMPED WATER AND THE DOUBLE SEAL DESIGN. THEY ARE RECOMMENDED FOR EMERGENCY DRAINING OF SMALL FLOODED AREAS (ROOMS, CELLARS, GARAGES), FOR THE DISPOSAL OF WASTE WATER IN THE HOME (DISHWASHER, WASHING MACHINE) AND FOR EMPTYING DRAINAGE TRAPS.
CONSTRUCTION CHARACTERISTICS
  • DELIVERY BODY: glass filled technopolymer, particularly resistant to impact and corrosion, with threaded port ISO 228/1.
  • SUCTION GRID: technopolymer.
  • IMPELLER: open type in technopolymer.
  • MOTOR SUPPORT: stainless steel AISI 304.
  • MOTOR SHAFT: stainless steel EN 10088-3 - 1.4104.
  • DOUBLE SEAL: mechanical seal ceramic -graphite - NBR, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
  • MOTOR: submersible asynchronous single-phase for continuous duty.
    TOP: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector built into the winding.
  • INSULATION: class F.
  • PROTECTION: IP 68.
  • REGISTERED MODEL nº 72765.

    STANDARD FEATURES:
    TOP 1-2-3 (single-phase) Float switch.
    Hosetail.
    Power cable in neoprene "H05 RN-F" length 5 metres with Schuko plug.
    TOP 4-5 (single-phase) Float switch.
    Hosetail.
    Couplingwith flap valve.
    Neoprene power cable "H05 RN-F" length 10 metres with Schuko plug.
OPTIONS ON REQUEST
  • pumps for aggressive liquids TOP - LA
  • special mechanical seal
  • 10 metre power cable.
    N.B. required for outdoor use to comply with standard EN 60335-2-41
  • versions without float switch
  • other voltages or frequency 60 Hz
