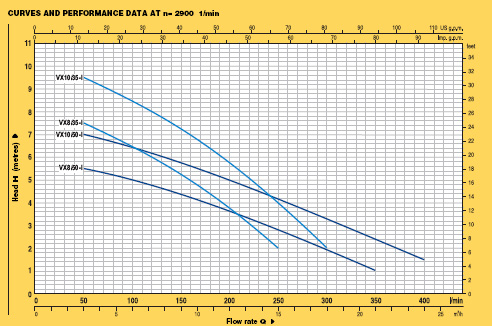

| RANGE OF PERFORMANCE |
|
Flow rate up to 400 l/min (24 m3/h)
Head up to 10 m |
|
| LIMITS OF USE |
|
Depth up to 5 m
Liquid temperature up to + 40°C
Passage of suspended solid bodies up to Ø 50 mm
For continuous duty: minimum immersion 280 mm from pump base. |
|
|
| INSTALLATION AND USE |
|
| THEY ARE RECOMMENDED FOR DRAINING WASTE WATER IN THE DOMESTIC, CIVIL AND INDUSTRIAL SECTORS, IN APPLICATIONS WHERE THE WATER CONTAINS SUSPENDED SOLIDS WITH DIMENSIONS UP TO Ø 50 mm. THEIR USE IS RECOMMENDED FOR DRYING FLOODED AREAS SUCH AS CELLARS, UNDERGROUND CAR PARKS, CAR WASHING AREAS AND FOR EMPTYING CESSPITS OR SEWAGE DISPOSAL. THESE PUMPS ARE OUTSTANDING IN THEIR RELIABILITY IN FIXED INSTALLATIONS WITH AUTOMATIC OPERATION. |
|
|
|
|
CONSTRUCTION CHARACTERISTICS |
|
|
- DELIVERY BODY: stainless steel AISI 304, with threaded port ISO 228/1.
- MOTOR CASING AND BASE: stainless steel AISI 304.
- IMPELLER: stainless steel AISI 304.
- MOTOR SHAFT: stainless steel AISI 316.
- DOUBLE SEAL: mechanical seal silicon carbide - NBR - stainless steal AISI 316, with oil barrier chamber and inner lip seal to protect the seal in the event of dry running.
- MOTOR: submersible asynchronous for continuous duty.
VXm-I: single-phase 220÷240 V - 50 Hz with capacitor and thermal overload protector .
VX-I: three-phase 380÷415 V - 50 Hz.
- INSULATION: class F.
- PROTECTION: IP 68.
STANDARD FEATURES:
VXm-I (single-phase) Flow switch.
Neoprene power cable "H07 RN-F" length 5 metres with Schuko plug.
VX-I (three-phase) Neoprene power cable "H07 RN-F" length 5 metres.
|
|
|
|
- 10 metre power cable.
N.B. required for outdoor use to comply with standard EN 60335-2-41
- single-phase pumps without float switch
- other voltages or frequency 60 Hz
|
|
