OVERALL DIMENSIONS

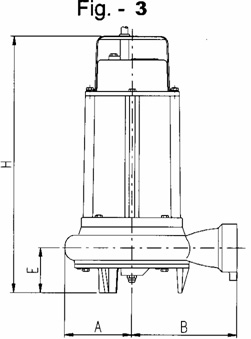

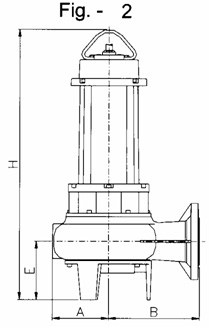

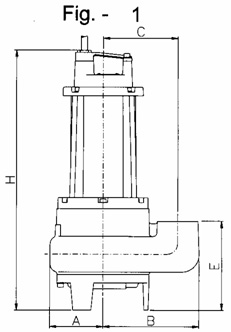

The basic overall dimensions and weights of all the electric pumps in the catalogue are given below. Detailed information cards are available on request, providing all the measurements required for installation with dry coupling devices.

TYPE OF PUMP	A Mm	B Mm	C Mm	E Mm	H Mm	Kg	Figure
DRO 50/2M	78	132	103	110	335	15	1
DRO 50/2T	78	132	103	110	335	15	1
DRO 75/2M	78	132	103	110	335	15.5	1
DRO 75/2M	78	132	103	110	335	15.5	1
DRO 100/2M	100	166	130	124	385	19.5	1
DRO 100/2T	100	166	130	124	385	19.5	1
DRO 150/2M	100	166	130	124	385	20.5	1
DRO 150/2T	100	166	130	124	385	20.5	1
DRO 200/2M	100	166	130	124	385	21.5	1
DRO 200/2T	100	166	130	124	385	21.5	1
DRO 150/4M	110	174		72	410	25	2
DRO 150/4T	110	174		72	410	25	2

TYPE OF PUMP	A Mm	B Mm	C Mm	E Mm	H Mm	Kg	Figure
DGO 50/2M	77	149	110	119	355	16.5	1
DGO 50/2T	77	149	110	119	355	16.5	1
DGO 75/2M	77	149	110	119	355	16.5	1
DGO 75/2T	77	149	110	119	355	16.5	1
DGO 100/2M	80	166	127	132	405	19.5	1
DGO 100/2T	80	166	127	132	405	19.5	1
DGO 150/2M	80	166	127	132	405	20.5	1
DGO 150/2T	80	166	127	132	405	20.5	1
DGO 200/2M	80	166	127	132	405	21.5	1
DGO 200/2T	80	166	127	132	405	21.5	1
DGO 100/4M	80	166	127	132	405	19	1
DGO 100/4T	80	166	127	132	405	19	1
DGO 200/2/80M	113	160		125	479	28	2
DGO 200/2/80T	113	160		125	479	28	2

TYPE OF PUMP	A Mm	B Mm	C Mm	E Mm	H Mm	Kg	Figure
DGN 250/2M	116	210	163	195	570	52	1
DGN 250/2T	116	210	163	195	570	52	1
DGN 300/2T	116	210	163	195	570	52.5	1
DGN 400/2T	127	190		143	790	77	2
DGN 550/2T	127	190		143	790	81	2

TYPE OF PUMP

A

Mm

B

Mm

C

Mm

E

Mm

H

Mm

Kg

Figure

DGP 550/4T

151

244

151

695

81

2

TYPE OF PUMP	A Mm	B Mm	C Mm	E Mm	H Mm	Kg	Figure
DGB 50/2M	77	149	110	119	360	18	1
DGB 50/2T	77	149	110	119	360	18	1
DGB 75/2M	77	149	110	119	360	18	1
DGB 75/2T	77	149	110	119	360	18	1
DGB 100/2M	80	166	127	132	412	22	1
DGB 100/2T	80	166	127	132	412	22	1
DGB 150/2M	80	166	127	132	412	23	1
DGB 150/2T	80	166	127	132	412	23	1
DGB 200/2M	80	166	127	132	412	23	1
DGB 200/2T	80	166	127	132	412	23	1

TYPE OF PUMP	A Mm	B Mm	C Mm	E Mm	H Mm	Kg	Figure
DGX 50/2M	77	149	110	119	360	18	1
DGX 50/2T	77	149	110	119	360	18	1
DGX 75/2M	77	149	110	119	360	18	1
DGX 75/2T	77	149	110	119	360	18	1
DGX 100/2M	80	166	127	132	412	22	1
DGX 100/2T	80	166	127	132	412	22	1
DGX 150/2M	80	166	127	132	412	22	1
DGX 150/2T	80	166	127	132	412	22	1
DGX 200/2M	80	166	127	132	412	22	1
DGX 200/2T	80	166	127	132	412	22	1
DGX 100/4M	80	166	127	132	405	22	1
DGX 100/4T	80	166	127	132	405	22	1
